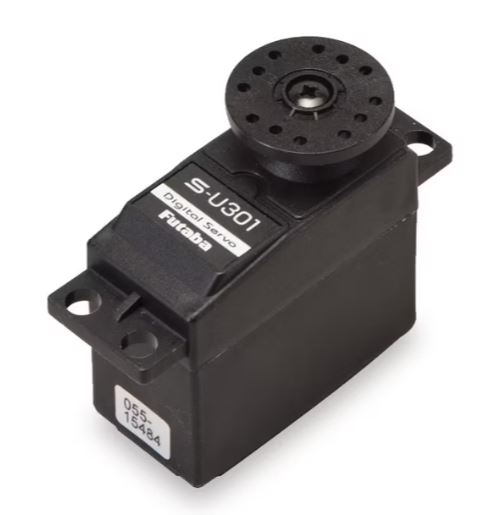

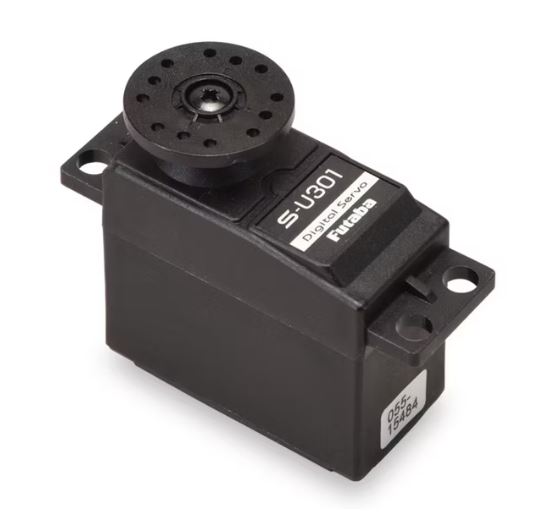

FUTABA S-U301B Futaba S-U301 Standard Digital Programmable Servo (S-Bus)

Description

Futaba’s new S-U301 servo is an inexpensive, HV (High Voltage), standard servo that operates with both conventional PWM receivers and is also programmable with S-BUS/S.BUS2 functionality. It has a normal operating voltage range of 4.8V to 7.4V (peak of 8.4V) and is perfect for use where an economical HV servo is required. With a 0.16s/60° operating speed and almost 4.0Kg/cm of torque, it is ideal for RC aircraft, helicopters, boats and cars.

The S-U301 replaces these previous Futaba servos: S3001, S3151 and S3073HV.

• Powerful S.BUS2 digital servo with plastic gear
• Low wear potentiometer
• Robust plastic housing
• High resolution
• High positioning accuracy
• Ball racedSpecificationsTypeDigitalWeight36.0gConnectorFutabaDimensions40.5 x 20.0 x 36.1mmGear TypeNylonSpeed0.18 sec/60 deg (6.6V)Speed0.16 sec/60 deg (7.4V)Torque3.5 kg/cm (6.6V)Torque3.9 kg/cm (7.4V)Voltage6.0 – 7.4V
